Getting started with the telescope adapter

Vizy's telescope adapter allows Vizy to attach to a standard 1.25“ barrel commonly found on consumer telescopes. To install the adapter:

1. Remove the existing lens. Start by loosening the set screw – use a screwdriver if necessary.

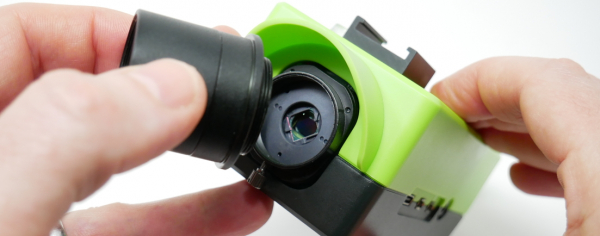

2. Unscrew the lens by grabbing the outermost ring and rotating counter-clockwise.

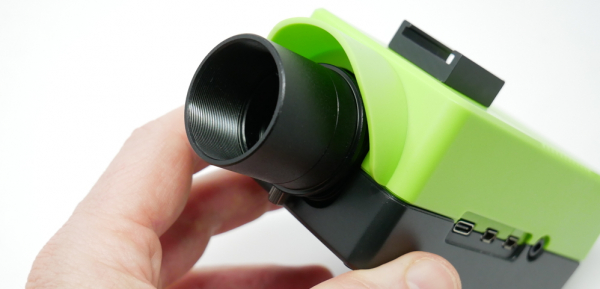

3. Screw the telescope adapter into Vizy's lens mount.

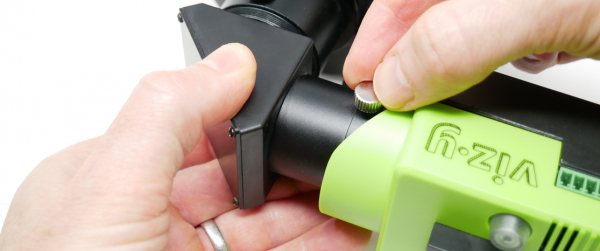

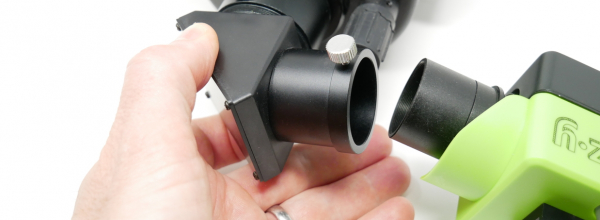

4. Slide the telescope adapter into your telescope and tighten the set screw if necessary.
